INSECT SCREEN · PERGOLA ACCESSORY
Retractable Pleated Mesh Screen Door
Close a pergola opening with side-retracting pleated mesh. Pull it closed for insect protection, then store it neatly at the side to preserve airflow, daylight and the garden view.
- Compact Type A system
- Large-opening Type B system
- Single or double opening
PRODUCT OVERVIEW
Keep the outdoor room ventilated while reducing insects
Pleated mesh travels horizontally in top and bottom tracks. When open, it stacks like an accordion at the side; when closed, the pull profile meets the frame to create a lightweight insect barrier. It can coordinate with pergola posts, doorways and patio openings in homes, outdoor dining areas, sunrooms and hospitality spaces.
This product is intended for insect screening and ventilation. It does not replace a ZIP screen, glass door or permanent enclosure. All dimensions require review against the finished opening, fixing substrate and site conditions.
TWO SYSTEM OPTIONS
Compact Type A or large-opening Type B
Model images use the supplied product photos. Dimensions and weights below are organized from the supplied references; final order data follows approved project drawings and samples.

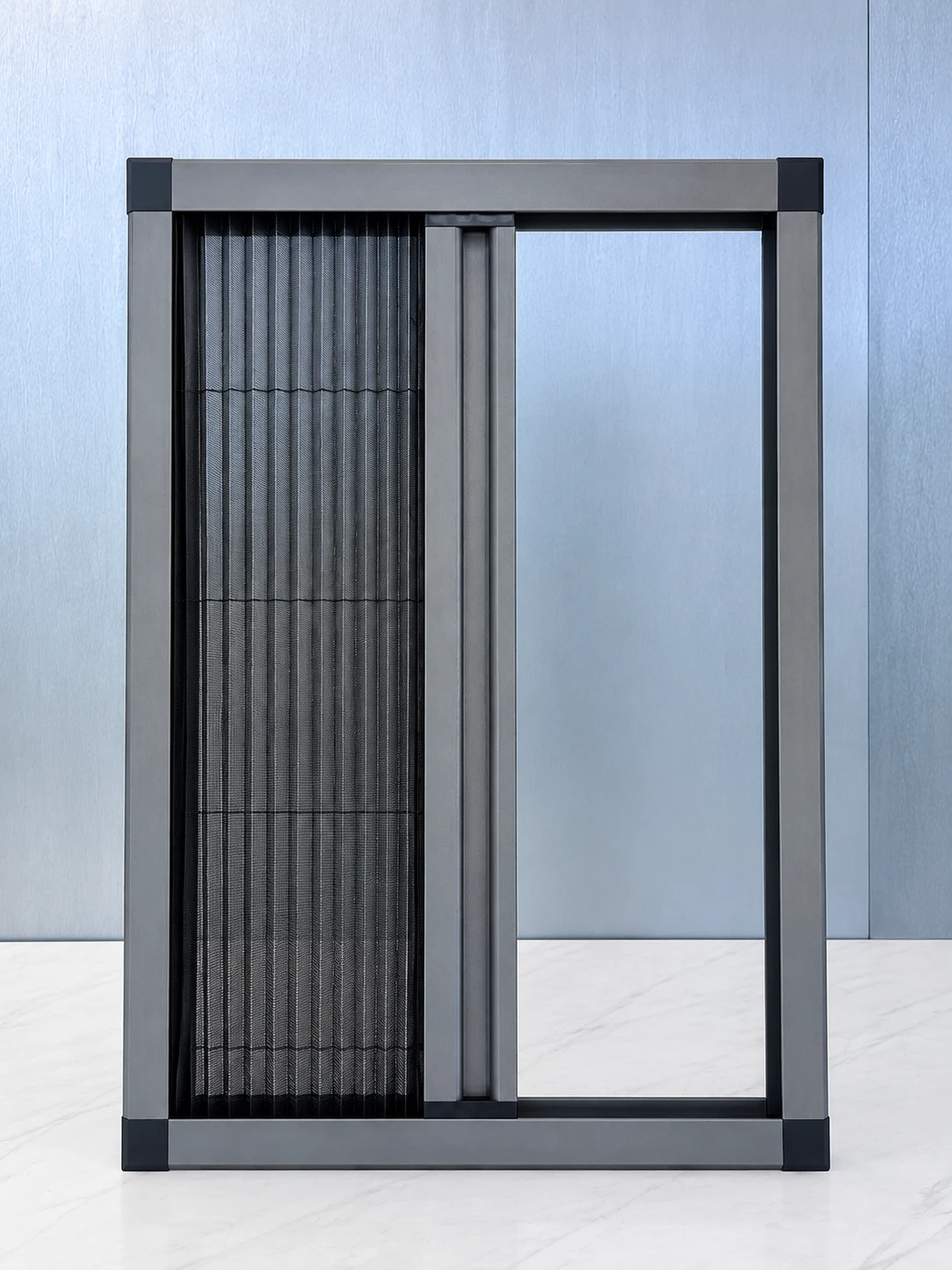

COMPACT FOLD SERIES
Type A · Compact profiles
Compact outer-frame and pull-profile sections for standard doorways, smaller pergola openings and projects prioritizing a small stack.
- YG21 outer frame
- 25 × 20 mm
- YG21 weight
- 0.207 kg/m
- YG21 wall
- 1.0 mm
- YG22 pull profile
- 20.2 × 38.5 mm
- YG22 weight
- 0.31 kg/m
- YG22 wall
- 0.8 mm

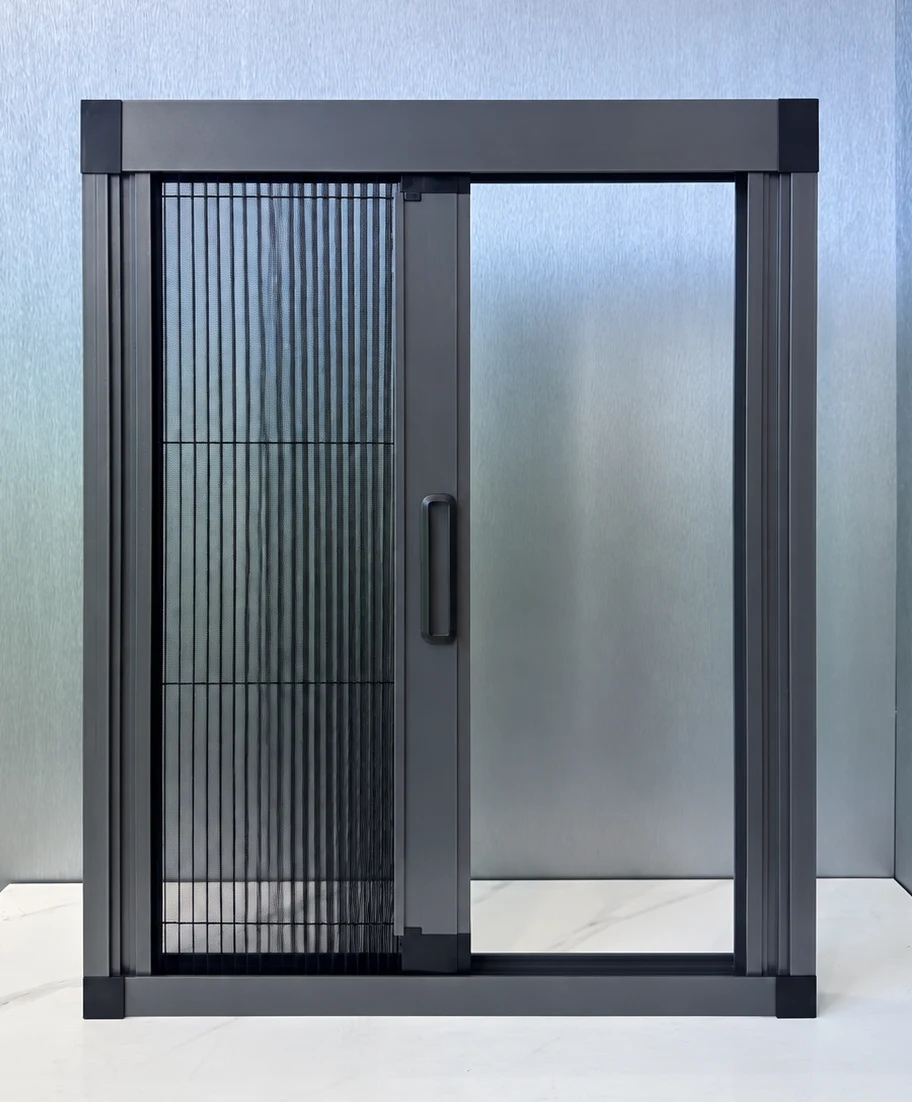

32-SERIES LARGE OPENING
Type B · Large-opening structure
A more substantial frame and pull-profile system with one- or two-side storage for wider pergolas, patio doorways and commercial leisure spaces.
- Single-opening reference
- ≤ 5 m
- Double-opening reference
- ≤ 6 m
- Height reference
- ≤ 3 m
- top profile
- 45 mm
- pull profile
- 48 mm
- small profile / border
- 26 / 16 mm
- bottom rail / side depth
- 25 / 32 mm
SYSTEM DETAILS
Designed for smooth movement and compact storage
From the pleated mesh to the upper and lower guides, each interface is coordinated with the finished opening and pergola frame.
Pleated mesh
Moves horizontally and stacks neatly at the side to preserve passage and view.
Pull profile
Creates a clear handhold and meets the frame or opposite leaf when closed.
Side storage
Plan one-side storage or two-side storage for a double-opening layout.
Low bottom track
Guides travel; threshold transitions and floor level require site measurement.
Aluminum frame
Charcoal and coordinated project finishes can match pergola posts, subject to sample approval.
Project sizing
Produced around finished clear width, height and mounting interfaces rather than a generic stock size.
APPLICATIONS
For semi-outdoor openings that still need airflow
Suitable for louvered pergolas, patio doorways, sunrooms and outdoor dining areas. Selection starts with opening size, traffic frequency, storage direction and threshold conditions.
Louvered pergolas
Add an insect barrier at side openings while retaining natural roof and side ventilation.
Patios and terraces
The stack stores to the side without the swing space of a hinged door.
Hospitality dining
Supports frequently used semi-outdoor dining areas where insect reduction matters.
PROJECT QUESTIONS
Before ordering a retractable mesh door
How do I choose Type A or Type B?+
Type A uses compact small-fold profiles for standard doors, windows and smaller pergola openings. Type B uses a 32-series fold for wider and taller single- or double-opening projects. Final selection depends on clear opening, substrate and use frequency.
What is the maximum reference size for Type B?+
The supplied reference lists up to 5 m for single opening, 6 m for double opening and 3 m in height. These are selection references, not automatic approval for every site.
Can it use single or double opening?+
Yes. Smaller openings often store to one side; wider openings can be reviewed as two leaves storing at both sides and meeting at the center.
Is the mesh door windproof or waterproof?+
Its primary roles are insect screening, ventilation and view retention. It is not a substitute for a ZIP screen, glass door or weatherproof enclosure.
What is needed for a quotation?+
Provide finished clear width and height, quantity, opening direction, installation photos, frame color and project location.
FACTORY PROJECT REVIEW
Share the clear opening to configure Type A or Type B
Send the dimensions, quantity, installation condition and preferred options for a model and compatibility review.
