JY220 · COMMERCIAL LOUVER SYSTEM

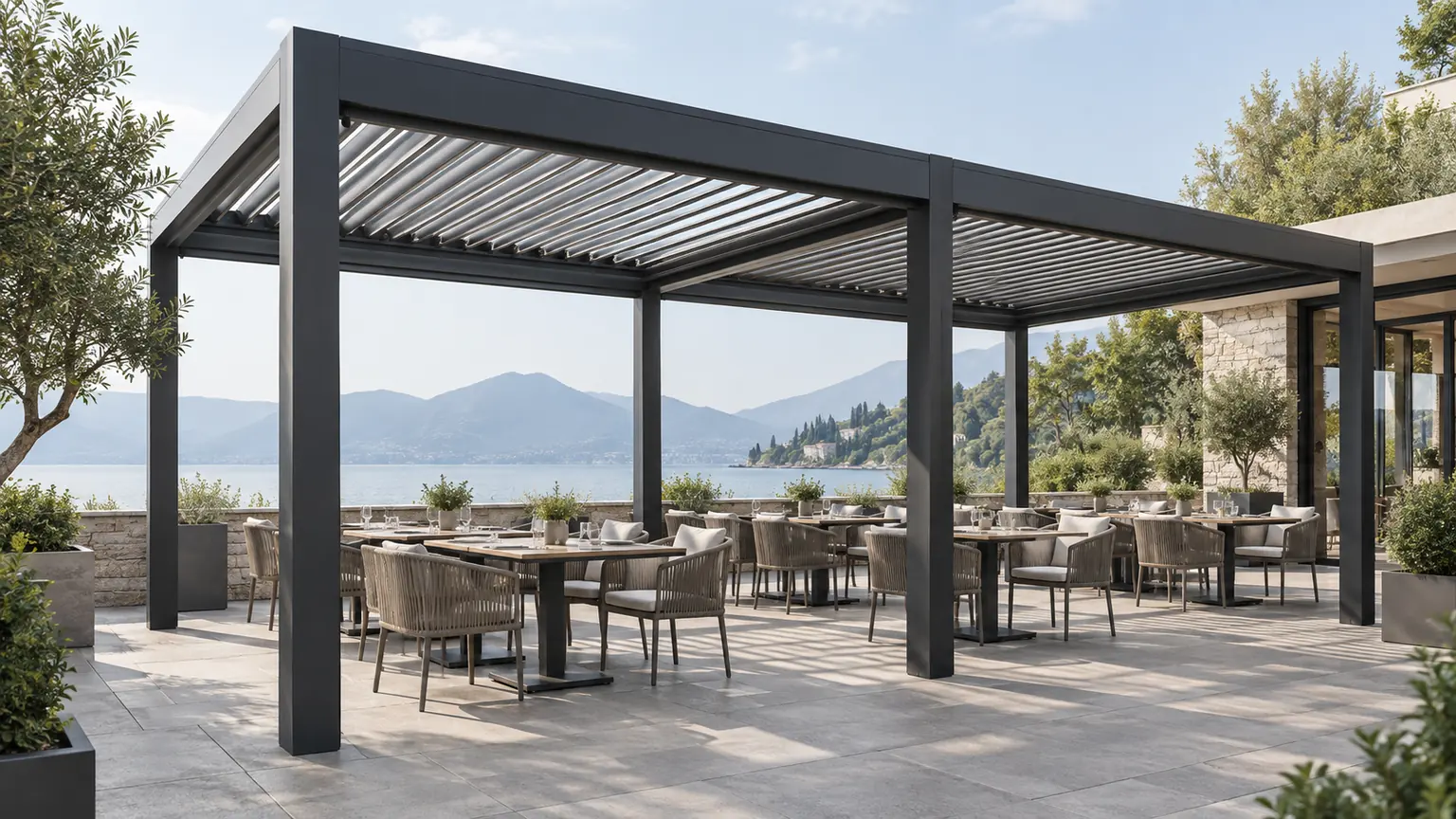

Commercial Louvered Pergola
A motorized aluminum pergola platform positioned for hospitality and commercial outdoor areas. Its project planning focuses on usable bays, circulation, repeatable modules, drainage and coordinated accessories rather than decorative shade alone.
- Motorized roof operation
- Project-specific configuration review
- B2B quotation and application support
DIRECT ANSWER
What is a commercial louvered pergola system?
A commercial louvered pergola is an adjustable aluminum roof and frame system planned for business or hospitality outdoor areas. Its design process considers guest circulation, seating layouts, repeated modules, drainage, electrical services and accessories. Final structural suitability and local requirements must be confirmed through project-specific engineering before installation.
MODEL CATALOGUE DATA
JY220 selection reference
These catalogue values are used for initial model selection. A final project still requires confirmation of dimensions, support, exposure, installation and local requirements.
- Operation
- Motorized
- Louver
- 220 mm rotating aluminum louver
- Post
- 180 × 180 mm
- Beam
- 220 × 143 mm profile
- Catalogue max single module
- 4.5 × 6.5 m
Catalogue maximums are selection references, not blanket structural approval. Final suitability depends on the site, foundation, exposure, installation method and local requirements. Source: Owner-supplied product catalogue screenshots, 2026-09-28
Key features of the commercial louvered pergola
Each feature describes the working system and the planning decision behind it.
Motorized adjustable roof
Powered louvers let operators change the overhead condition as daylight and service needs change. Control zoning and operating routines should be planned around the number of modules and the way staff use the terrace.
Commercial layout coordination
The pergola is planned around seating, circulation, entrances and service routes. This makes post positions and module divisions part of the operational layout rather than an isolated structural decision.
Integrated water management
Closed-roof water is directed toward planned collection and discharge points. Outlet locations need to be coordinated with paving, façades and the site drainage strategy before the project is approved.
Hospitality accessory planning
Lighting, side screens, glass and comfort accessories may be considered to support longer daily or seasonal use. Compatibility and controls depend on the selected frame, openings and local project conditions.
How it works
A plain-language sequence from user input to the resulting roof position.
Define the operating zones
Map seating, walkways, doors and service routes before placing modules.
Select the roof position
Motorized louvers adjust daylight and shade across the planned terrace zone.
Coordinate enclosure and services
Plan lighting, screens, power and drainage with the frame rather than afterward.
Confirm the project package
Review drawings, interfaces and local requirements before production and installation.
ENGINEERING / STRUCTURE
Coordinate the roof, frame and project interfaces
Module and post grid
Bay divisions are coordinated with customer flow, furniture and service access.
Roof drive and controls
Motorized roof zones and user controls are planned for the operating context.
Drainage interfaces
Gutters, outlets and site discharge points are resolved with the architecture.
Project-specific review
Exposure, foundations and local requirements require qualified project confirmation.
Configuration options
Configuration availability depends on the selected system, supporting conditions and project requirements.
Restaurant terrace
A modular roof planned around tables, circulation and service routes.
Hotel-style outdoor area
A coordinated shade and comfort system for hospitality seating zones.
Connected commercial modules
Repeated bays can organize a larger area while maintaining practical post lines.
Enclosed or open sides
Compatible side systems may be reviewed according to season, access and ventilation needs.
Applications that fit this roof concept
These are application visualizations and planning examples, not customer project claims.
Restaurant terrace
The module grid can be coordinated around guest seating, clear walkways and service access.
Explore application
Outdoor bar and lounge
Motorized shade, lighting and side options can support different day and evening operating conditions.
Explore application
Commercial outdoor projects
Use-case planning connects the system to hospitality, retail, rooftop and public-facing outdoor areas.
Explore applicationACCESSORY INTEGRATION
Plan accessories with the pergola
Lighting, screens, glass and comfort accessories may be reviewed with this product. Accessory compatibility depends on the selected pergola configuration, exact opening dimensions, controls and project conditions.
Explore accessories
What should buyers consider?
Local requirements and project-specific engineering should be confirmed before installation.
Guest and service circulation
Do not place posts or side systems where they obstruct primary movement routes.
Operating zones
Decide whether connected bays should move together or be controlled as separate areas.
Drainage and utilities
Coordinate water discharge, power and control access with the venue infrastructure.
Local approvals
Commercial use, foundations, exposure and local building requirements need project-specific review.
Compare related pergola options
Compare roof movement, control, application and configuration before selecting a model.
PopularJY180
Motorized Louvered Pergola
A versatile motorized louvered pergola with 180 mm louvers, balancing strength, appearance and cost for villas and terraces.
- Operation
- Motorized
- Catalogue max single module
- 3.5 × 5.0 m
- Motorized adjustable louvers
- 180 mm aluminum louvers
- 135 × 135 mm posts
- 165 × 110 mm beam profile
PremiumJY250
Premium Large-Span Pergola
The largest rotating-louver series in the range, using 250 mm blades, a 260 mm heavy beam and 180 mm posts for premium large-span projects.
- Operation
- Motorized
- Catalogue max single module
- 7.0 × 6.0 m
- Motorized rotating louver system
- 250 mm blade profile
- 180 × 180 mm posts
- 260 mm heavy boat-hull beam section
RELATED BUYING GUIDES
Research the decision behind the model.
Use these guides to compare roof operation, project inputs and installation planning before requesting a quotation.
JY220 FAQ
Questions from project buyers
What is a commercial louvered pergola?+
It is an adjustable aluminum roof and frame system planned around commercial circulation, operations, drainage and accessory requirements.
How is JY220 different from a residential model?+
JY220 is positioned for hospitality and commercial layouts where module planning, operating zones and coordinated services are central to the brief.
Can several commercial pergola modules be connected?+
Connected modules can be reviewed to cover a larger area while maintaining practical post lines and drainage paths.
Can lighting and side enclosures be included?+
Compatible lighting, screens or glass can be considered after openings, controls, ventilation and access routes are reviewed.
Is JY220 suitable for restaurants?+
It can be considered for restaurant terraces when the seating plan, service routes, drainage and local requirements are coordinated.
What engineering information is required?+
Provide the site, footprint, support conditions, intended use, layout, exposure and relevant local requirements for review.
How do I request a commercial quotation?+
Submit dimensions, quantity, destination, application, installation concept and preferred accessories through the RFQ form.
FACTORY PROJECT REVIEW
Plan a commercial louvered pergola project
Send the dimensions, quantity, installation condition and preferred options for a model and compatibility review.
